Tungsten Carbide 97MXC Thermal Spray Wire Tungsten Carbide Alloy Abrasion And Wear Resistant
Product Description
H Tungsten Carbide (P) is a cored wire specifically designed for arc spray systems. It is a titanium and tungsten carbide alloy in an amorphous matrix. H Tungsten Carbide (P) produces a hard, abrasive and corrosion resistant coating, with a service environment of up to 1000° F. H Tungsten Carbide (P) is used in a wide variety of industrial high wear applications.
Equivalent to TAFA 97MXC, Metco Duocor, PMET 297
Surface Preparation
Surface should be clean, white metal, with no oxides (rust), dirt, grease, or oil on the surface to be coated. Note: It is best not to handle surfaces after cleaning.
Recommended method of preparation is, to grit blast with 24 mesh aluminum oxide, rough grind, or rough machine in a lathe.
Chemical Composition(%)
| WC | Cr% | TiC% | Ni% | B% | Si% | Fe% |
| 26% | 13 | 6.0 | 6.0 | 2.0 | 1.0% | Bal |
Typical Deposit Characteristics
| Typical Hardness | Bond Strength | Deposit Rate |
| HRC 65 | 5000 psi | 10lbs /hr/100A |

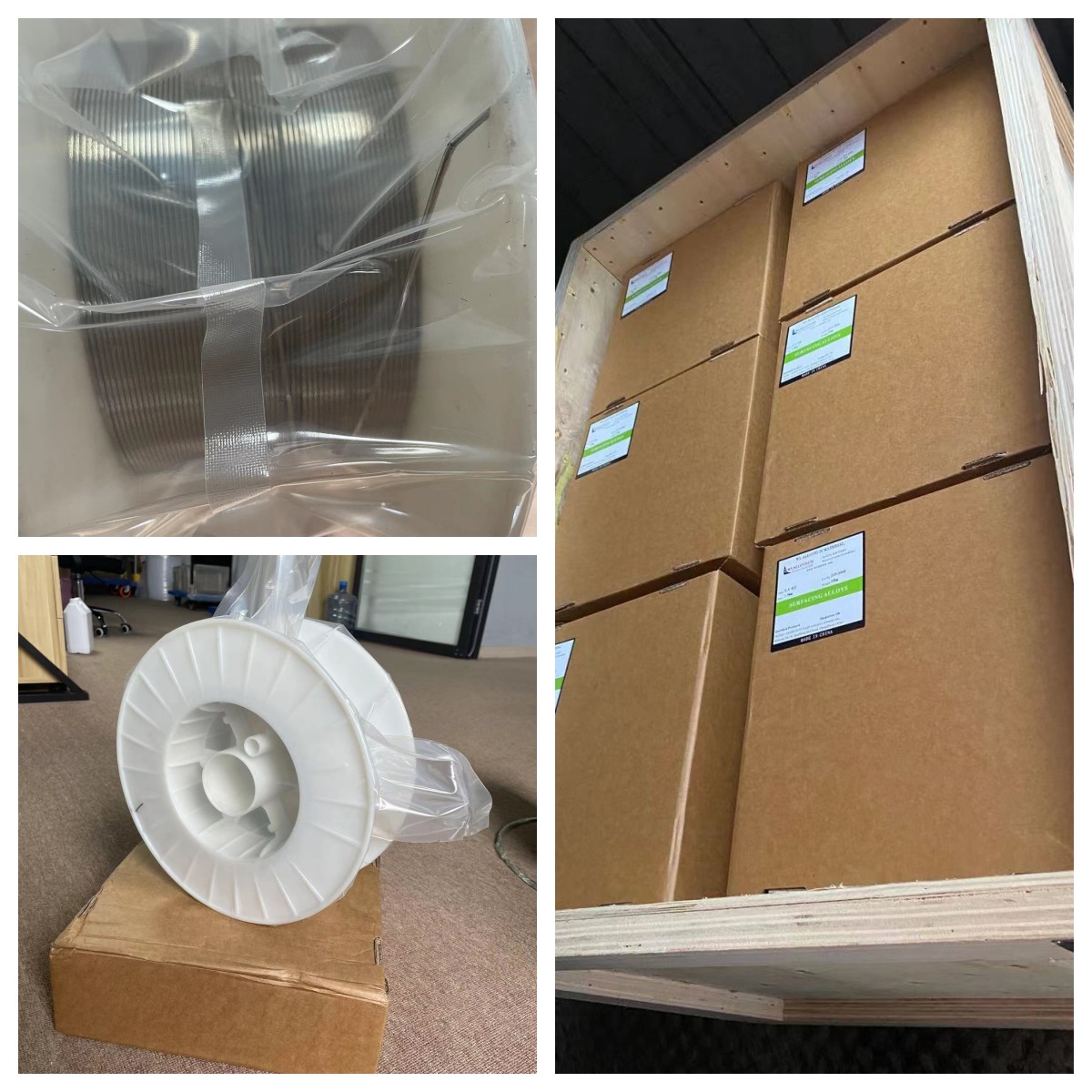

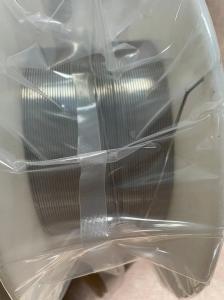

Packing Details
| Diameter | DimensionTolerance | Packing | Wire Weight |
| 1/16"(1.6mm) | +0/-0.05 | D 300 Spool | 15kgs(33 lbs)/spool |
| 2.0mm | +0/-0.05 | D 300 Spool | 15kgs(33 lbs)/spool |
| 1/8"(3.17mm) | +0/-0.05 | Coil Form | 20-400kgs/coil |
Other sizes (diameter and wire weight) can be produced by customers’ requirement.
Applications
• Abrasion and wear resistant
• High bond strength
• Non-skid surface
Type We Could Offer
Thermal spray wire-Nickel based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-NiAl95/5 | 75B | 885 | 8400 | 1.6/2.0/3.17mm |
| WL-NiAl80/20 | 79B | 884 | 405 | 2.0/3.17mm |
| WL-NiCr80/20 | 06C | 821 | 8450 | 1.6/2.0/3.17mm |
| WL-Monel400 | 70T | 877 | Monel | 1.6/2.0/3.17mm |
| WL-NiCrTi | 45CT | 889 | 8500 | 1.6/2.0/3.17mm |
| WL-Inconel718 | 78T | 818 | 8718 | 1.6/2.0/3.17mm |
| WL-Inconel625 | 71T | 860 | 8625 | 1.6/2.0/3.17mm |
| WL-Alloy-C276 | 77T | 876 | 8276 | 1.6/2.0/3.17mm |
| WL-NiCrAl(P) | 73MXC | 886 | 8443 | 1.6/2.0mm |
| WL-NiCrAlY(P) | 76MXC | 887 | 884 | 1.6/2.0mm |
| WL-NiMoAl(P) | 74MXC | 888 | 8447 | 1.6/2.0mm |
Thermal spray wire-Iron based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-SS420 | 60T | 720 | Metcoloy 2 | 1.6/2.0/3.17mm |
| WL-SS304/304L | 80T | 710 | Metcoloy 1 | 1.6/2.0/3.17mm |
| WL-SS316/316L | 85T | 730 | Metcoloy 4 | 1.6/2.0/3.17mm |
| WL-FeCrAl | Alcro | 731 | | 1.6/2.0mm |
| WL-FeCrBSi(P) | 95MXC | 273 | | 1.6/2.0mm |
| WL-FeCrNiB(P) | 96MXC | | | 1.6/2.0mm |
| WL-Tungsten Carbide(P) | 97MXC | 297 | Duocor | 1.6/2.0mm |
| WL-LCr Carbide(P) | 98MXC | 223 | | 1.6/2.0mm |
| WL-FeAl(P) | 35MXC | 50 | | 1.6/2.0mm |
| WL-HCr Carbide(P) | | 226 | Sm8222 | 1.6/2.0mm |
Thermal spray wire-Copper based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Pure Copper | | | | 1.6/2.0/3.17mm |
| WL-CuSn1 | 05T | | | 1.6/2.0/3.17mm |
| WL-CuAl8 | | | Sprabronze AB | 1.6/2.0/3.17mm |
| WL-CuAl10 | 10T | 590 | Sprabronze AA | 1.6/2.0/3.17mm |
Thermal spray wire-Zinc & Aluminium based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Pure Al | 01T | 699 | Aluminum | 1.6/2.0/3.17mm |
| WL-Pure Al Grade 1100 | | | | 1.6/2.0/3.17mm |
| WL-Pure Zn | 02Z | 540 | Zinc | 1.6/2.0/3.17mm |
| WL-AlMg5 | | | Metco AlMg | 1.6/2.0/3.17mm |
| WL-ZnAl85/15 | 02A | | Zn/Al | 1.6/2.0/3.17mm |
Thermal spray wire-Other based alloy
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Molybdenum wire | 13T | 899 | Sprabond | 1.6/2.0/3.17mm |
| WL-Babbitt wire | 04T | 542 | Sprababbitt | 1.6/2.0/3.17mm |
| WL-Tin wire | 02W | 549 | Metco Tin | 1.6/2.0mm |
| WL-Ti wire | 14T | | | 1.6/2.0mm |
